Designed in New York
The only reasonably priced high end DAC with MQA hardware decoder needed to hear full original resolution of Tidal Masters
Now shipping in silver or black

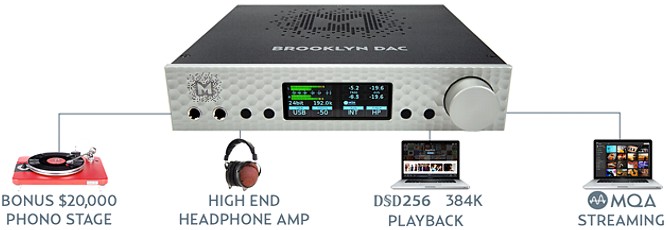

Brooklyn DAC+ features the following improvements as compared to Brooklyn DAC:
- Sabre 9028 Pro chipset ( 9018 in Brooklyn DAC model)
- Higher grade, more transparent and less noisy analog attenuator circuit.
- Improved analog input performance
- Improved Phono Stage transparency
- Improved Headphone Amp sound (more detail, more definition)
- Dual mono analog path
SPECIFICATIONS:
CONVERSION: up to 384k, 32bit PCM, native DSD
up to DSD256, DXD, 130dB Dynamic Range
MQA HI-RES DECODER: built in certified hardware
MQA™ decoder

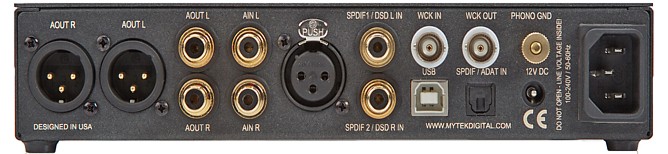

DIGITAL INPUTS: USB2 Class2 (OSX, Linux driverless,
all formats), AES/EBU (PCM up to 192k, up to DSD64 DOP), 2x S/PDIF (PCM up to 192k, up to DSD64 DOP), Toslink/ADAT 2x S/PDIF (PCM up to 192k, up to DSD64 DOP), SDIF3 DSD up to DSD256
CLOCK: “Mytek Femtoclock Generator™” 0.82ps internal jitter, Wordclock Input and Output (allows stacking multiple units for multichannel operation,
includes mch DSD)
ANALOG OUTPUTS: RCA, balanced XLR, simultaneous,
50 Ohm impedance
HEADPHONE OUTPUTS: Reference High Current,
High transient Headphone Amp, 500mA, 6 Watts,
dual headphone jacks, designed to drive hard to
drive headphones.
BUILT-IN ATTENUATOR: Choice of 1dB step analog attenuator, separate for main out and head- phones,
1dB step digital 32 bit attenuator and purist relay bypass.
BUILT-IN ANALOG PREAMP: Line level input or
Phono M/M, M/C input, relay controlled.
AUDIO INTERFACE FUNCTION: All digital inputs can
be routed into computer via USB2. Allows connection
of external digital sources such as CD Players and
digitizing ADCs.
REMOTE: Included, universal remote capable
FIRMWARE: Upgradable via USB Control panel
WORLDWIDE POWER SUPPLY
OPTIONAL DC/BATTERY POWER INPUT: 12VDC
RECOMANDĂRI:
Sursă de alimentare high-end
Ferrum HYPSOS
Sursă de alimentare high-end
SBooster BOTW P&P ECO MKII
DIMENSIONS: WxDxH=8.5x8.5x1.74”=216x216x44mm
WEIGHT: 4lbs, 2kg
Garanţie: 36 luni!
