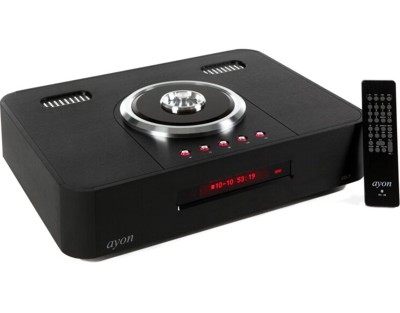

Ayon CD-T CD-transport
Top Loader,
6H14 tube buffer for digital output (SPDIF & AES/EBU),
24/192kHz up‐sampling, 2x power transformer, RC;
Digital/Out: SPDIF, AES/EBU, BNC, I2S & TosLink.
| CD-Transport |
Ayon CD-T |
| Conversion rate |
192kHz / 24 bit |
| Tube complement |
6H14 |
| Dynamic range |
> 120dB |
| Intrinsic Jitter |
1 pico-second RMS |
| Digital output |
75 O S/PDIF (RCA), 110 O AES/EBU (XLR) |
|
BNC, I2S, TosLink |
| S/N ratio |
> 119 dB |
| Frequency response |
20Hz - 20kHz +/- 0.3dB |
| Total harmonic distortion @ 1kHz |
< 0.001% |
| Remote control |
Yes |
| Dimension (WxDxH) cm |
48x39x12 cm |
| Weight |
14 kg |
Garanţie 36 luni. Click pe imagine pentru detalii! Preţ listă: 4950 €
Preţ Audio Alchemy: 3530 €!!! |
| |
|
|
| |
 |

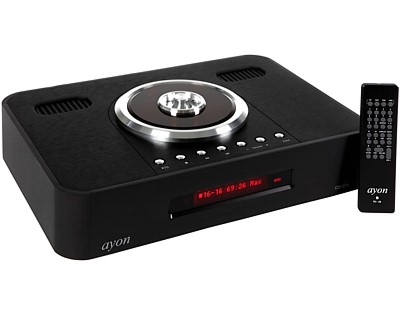

Ayon CD-07S CD-player
Top Loader,
2x 5687 tube output stage, RCA/O & Bal/O, 24/192kHz upsampling,
Volume output control, RC;
Digital/In: SPDIF, USB‐24/192;
Digital/Out: SPDIF.
| CD-Player |
Ayon CD-07s |
| Conversion rate |
192kHz / 24 bit |
| Tube complement |
5687 |
| Dynamic range |
> 114dB |
| Output level @1 kHz / 0,775V -0dB |
2V or 4V rms |
| Output impedance Single-Ended-RCA |
~ 300 Ohms |
| Output impedance Balanced-XLR |
~ 300 Ohms |
| Digital output |
75 Ohm S/PDIF (RCA) |
| Digital input |
75 Ohm S/PDIF (RCA) & USB |
| S/N ratio |
> 1 17 dB |
| Frequency response |
20Hz - 20kHz +/- 0.3dB |
| Total harmonic distortion @ 1kHz |
< 0.001% |
| Remote control |
Yes |
| Output complement |
RCA & XLR |
| Dimensi on (WxDxH) cm |
46x32x11 cm |
| Weight |
11 kg |
Garanţie 36 luni. Click pe imagine pentru detalii!
Preţ listă: 2795 €
Preţ Audio Alchemy: 1990 €!!! |
| |
|
|
| |
|

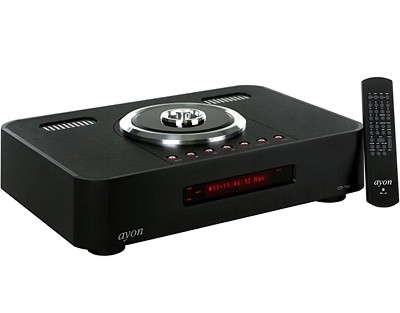

Ayon CD-1sx CD-player
Top Loader, 2x 6H30 SE tube output stage, 1 x 6Z4 rectifier, RCA/O & Bal/O,
24/192kHz up‐sampling, Volume output control, RC;
PCM ‐ Digital /IN: USB–24/192kHz, SPDIF, TosLink;
DSD ‐ Digital /IN: USB –DSD;
Digital/Out: SPDIF.
| CD-Player |
Ayon CD-1sx |
| Conversion rate |
192kHz / 32 bit & DSD |
| Tube complement |
6H30 |
| Dynamic range |
> 116dB |
| Output level @1 kHz / 0,775V -0dB Low |
0 – 2.5 V / variable |
| Output level @1 kHz / 0,775V -0dB High |
0 – 5V / variable |
| Output impedance Single-Ended-RCA |
~ 300 O |
| Output impedance Balanced-XLR |
~ 300 O |
| Digital output |
75 O S/PDIF (RCA) |
| Digital input |
75 O S/PDIF (RCA),
USB – 24/192 kHz & DSD, TosLink |
| S/N ratio |
> 118 dB |
| Frequency response |
20Hz - 20kHz +/- 0.3dB |
| Total harmonic distortion @ 1kHz |
< 0.001% |
| Remote control |
Yes |
| Output complement |
RCA & XLR |
| Dimension (WxDxH) cm |
48x36x12 cm |
| Weight |
13 kg |
Garanţie 36 luni. Click pe imagine pentru detalii!
Preţ: 3790 €
|
| |
|
|
| |
 |

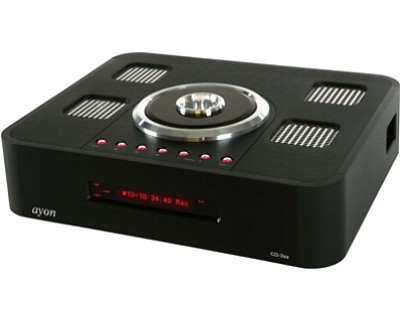

Ayon CD-3sx CD-player
| CD-Player |
Ayon CD-3sx |
| Conversion rate |
192kHz / 32 bit & DSD |
| Tube complement |
6H30 |
| Dynamic range |
> 118dB |
| Output level @1 kHz / 0,775V -0dB Low |
2.5V fixed or 0 – 2.5 V rms variable |
| Output level @1 kHz / 0,775V -0dB High |
5V fixed or 0 – 5V rms variable |
| Output impedance Single-Ended-RCA |
~ 300 O |
| Output impedance Balanced-XLR |
~ 300 O |
| Digital output |
75 O S/PDIF (RCA) |
| Digital input |
75 O S/PDIF (RCA), USB – 24/192 kHz & DSD, I2S, AES/EBU, TosLink,
3 x BNC for DSD |
| S/N ratio |
> 119 dB |
| Frequency response |
20Hz - 20kHz +/- 0.3dB |
| Total harmonic distortion @ 1kHz |
< 0.001% |
| Remote control |
Yes |
| Output complement |
RCA & XLR |
| Dimension (WxDxH) cm |
48x39x12 cm |
| Weight |
17 kg |
Garanţie 36 luni. Click pe imagine pentru detalii!
Preţ: 7410 € |
| |
|
|
| |
|

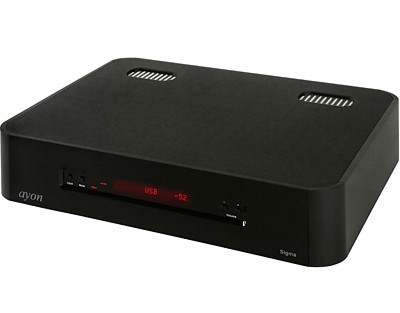

Ayon Sigma DAC
2 x 6H30 SE tube output stage, 1 x 6Z4 tube rectifier, RCA/O& Bal/O, 24/192kHz up‐sampling, Volume output control, RC;
PCM ‐ Digital /IN: USB–24/192kHz, SPDIF, BNC, AES/EBU,
I2S, TosLink,
DSD ‐ Digital /IN: USB –DSD, I2S/DoP, 3 x BNC for DSD ( DSD‐L,
DSD‐R & WCK).
| Digital/Analog Converter |
Ayon Sigma |
| Conversion |
32 bit, PCM up to 192k, 64xDSD, 128xDSD |
| DAC configuration |
8 mono DACs to 2- stereo outs |
| Tube complement – Analog output |
6H30 |
| Dynamic range |
> 128dB |
| Output level @1 kHz / Rms |
0-10V |
| Output impedance Single-Ended-RCA |
~ 300 Ohms |
| Output impedance Balanced-XLR |
~ 300 Ohms |
| Digital input |
1 x S/PDIF, 1 x AES/EBU, 1 x Toslink,
1 x BNC, 1 x USB, 1 x I2S, 1 x DoP,
3 x BNC for DSD |
| Analog output |
RCA & XLR |
| S/N ratio |
> 120 dB |
| Frequency response |
20Hz - 20kHz +/- 0.2dB |
| Total harmonic distortion @ 1kHz |
< 0.002% |
| Remote control |
Yes |
| Dimension (WxDxH) cm |
48x36x11 cm |
| Weight |
12 kg |
Garanţie 36 luni. Click pe imagine pentru detalii!
Preţ listă: 3995 €
Preţ Audio Alchemy: 2850 €!!! |
| |
|
|
| |
 |

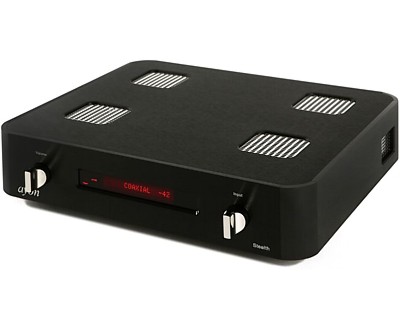

Ayon Stealth DAC
4 x 6H30 PSE tube output stage, 4 x 6Z4 tube rectifier, RCA/O & Bal/O, 2 x Line /IN, 1 x Tape out, 24/192kHz up‐sampling, Electric‐Analog‐Switch Volume output control, RC;
PCM ‐ Digital /IN: USB–24/192kHz, SPDIF, BNC, AES/EBU,
I2S, TosLink,
DSD ‐ Digital /IN: USB –DSD, I2S/DoP, 3 x BNC for DSD ( DSD‐L,
DSD‐R & WCK).
| Digital/Analog Converter |
Ayon Stealth |
| Conversion rate |
32 bit, PCM up to 192k, 64xDSD, 128xDSD |
| DAC configuration |
8 mono DACs to 2- stereo outs |
| Tube complement – Analog output |
6H30 |
| Dynamic range |
> 128dB |
| Output level @1 kHz / Rms |
0-12V |
| Output impedance Single-Ended-RCA |
~ 300 Ohms |
| Output impedance Balanced-XLR |
~ 300 Ohms |
| Digital input |
1 x S/PDIF, 1 x AES/EBU, 1 x Toslink,
1 x BNC, 1 x USB, 1 x I2S, 3 x BNC for DSD |
| Analog line input/output |
RCA |
| Analog output |
RCA & XLR |
| S/N ratio |
> 120 dB |
| Frequency response |
20Hz - 20kHz +/- 0.2dB |
| Total harmonic distortion @ 1kHz |
< 0.002% |
| Remote control |
Yes |
| Dimension (WxDxH) cm |
48x40x11 cm |
Weight |
16 kg |
Garanţie 36 luni. Click pe imagine pentru detalii!
Preţ listă: 6995 €
Preţ Audio Alchemy: 4990 €!!! |
| |
|
|
| |
 |

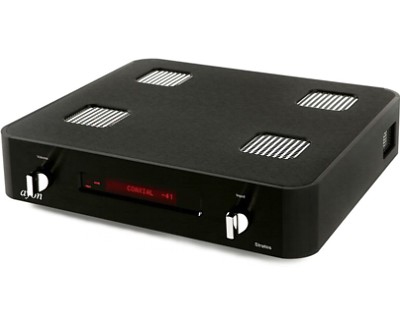

Ayon Stratos DAC
4 x 6H30 PSE tube output stage, 4 x 6Z4 tube rectifier, RCA/O & Bal/O, 3 x Line /IN, 1 x Tape out, 24/192kHz up‐sampling,
Dual Electric‐Analog‐Switch Volume output control, RC;
PCM ‐ Digital /IN: USB–24/192kHz, SPDIF, BNC, AES/EBU, I2S,
TosLink,
DSD ‐ Digital /IN: USB –DSD, I2S/DoP, 3 x BNC for DSD ( DSD‐L,
DSD‐R & WCK).
Digital/Analog Converter |
Ayon Stratos |
Conversion rate |
32 bit, PCM up to 192k, 64xDSD, 128xDSD |
DAC configuration |
16 mono DACs to 2-stereo outs |
Tube complement – Analog output |
6H30 |
Dynamic range |
> 130dB |
Output level @1 kHz / Rms |
0-12V |
Output impedance Single-Ended-RCA |
~ 300 Ohms |
Output impedance Balanced-XLR |
~ 300 Ohms |
Digital input |
1 x S/PDIF, 1 x AES/EBU, 1 x Toslink,
1 x BNC, 1 x USB, 1 x I2S, 3 x BNC for DSD |
Analog input |
2 x RCA & 1 x XLR |
Analog output |
RCA & XLR |
S/N ratio |
> 120 dB |
Frequency response |
20Hz - 20kHz +/- 0.2dB |
Total harmonic distortion @ 1kHz |
< 0.002% |
Remote control |
Yes |
Dimension (WxDxH) cm |
48x42x11 cm |
Weight |
17 kg |
Garanţie 36 luni. Click pe imagine pentru detalii!
Preţ listă: 9995 €
Preţ Audio Alchemy: 7130 €!!! |
