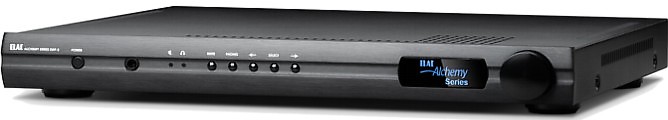

The ELAC Alchemy DDP-2 combines three components in one elegant piece of gear to give you the highest-quality digital-to-analog converter, preamp and digital streamer we know how to make. Then we combined it in a single chassis only 1U (1.75 inches) high. The preamplifier offers maximum flexibility, while incorporating DAC and streaming functions to make the DDP-2 the centerpiece of your digital system.
SPECIFICATIONS:
• Digital Inputs: USB, (2) COAXIAL, (2) OPTICAL, AES/EBU, (2) I2S (ALCHEMY & HDMI)
• Streaming Inputs: ETHERNET, BLUETOOTH, WIFI
• Supported Services: PCM, DSD, DoP, ROON endpoint, Spotify Connect
• Frequency response (digital): 10hz-20khz +/- 0.2dB
• Nominal THD+N (digital): <0.01%
• Signal-to-noise ratio (1 kHz) (digital): >110dB
• Sample Rates: 44.1, 48. 88.2, 96, 176.4, 192, 352.8, 384KHz
• Output Voltage (digital): 7.0V RMS @0dBFs
• Analog Inputs: XLR BALANCED, (2) RCA UNBALANCED
• Input impedance: RCA=18K, XLR=36K
• Frequency response (analog): 10hz-20khz +/- 0.2dB
• Nominal THD+N (analog): <0.001%
• Signal-to-noise ratio (1 kHz) (analog): >110dB
• Output Voltage (analog): >10.0V RMS
• Crosstalk (L-to-R or R-to-L): >110dB 10-1K, >80dB 1K-20K
• Gain: 12dB (input dependent)
• Output impedance: 50 Ohms
• Analog Outputs: XLR BALANCED, (1) RCA UNBALANCED (fixed gain) (1) RCA UNBALANCED (variable)
• Available finishes: Black
• Dimensions (HxWxD): 51 x 444 x 381mm including jacks
• Weight: 6,40 kg
GARANŢIE: 36 luni!
